Complex 3D stacked structures and embedded devices

As the industry moves to complex 3D stacked structures and embedded devices, there is a need for tools that can accurately render and provide meaningful visual and DRC feedback to enable rapid right-the-first-time designs.

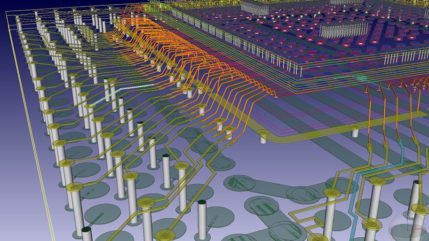

Chip design software with concurrent co-design

We can help you with

Advanced IC Packaging

Chip, package and board co-design for realtime 3D hierarchical design allows design teams to concurrently create any combination of advanced stack dies, packages and PCBs.

System Level Circuit Engineering

Perform multi-level SI simulation for upfront verification of signal quality issues and determination of optimal termination and topology rules.

3D Multi-Board PCB Design

You can select between a combination of PCBs, packages, and SoCs into one design and complete the layout of the design as a complete system.

Customer reference

toshiba-transfer-jet-813x492-510x310
  • Case Study
October 15, 2018
Toshiba

Toshiba faced a difficult design problem: their TransferJet™ technology was embedded in a customer cell phone, and when the next rev of the phone they needed to shrink the board and the module thickness. On top of that, they had to add RF matching to simplify the adoption of the module. Toshiba used Zuken’s CR-8000 Design Force with ANSYS analysis tools to accomplish the project.

Read now
significantly reduce product size with 3D chip, package, board co-design.
