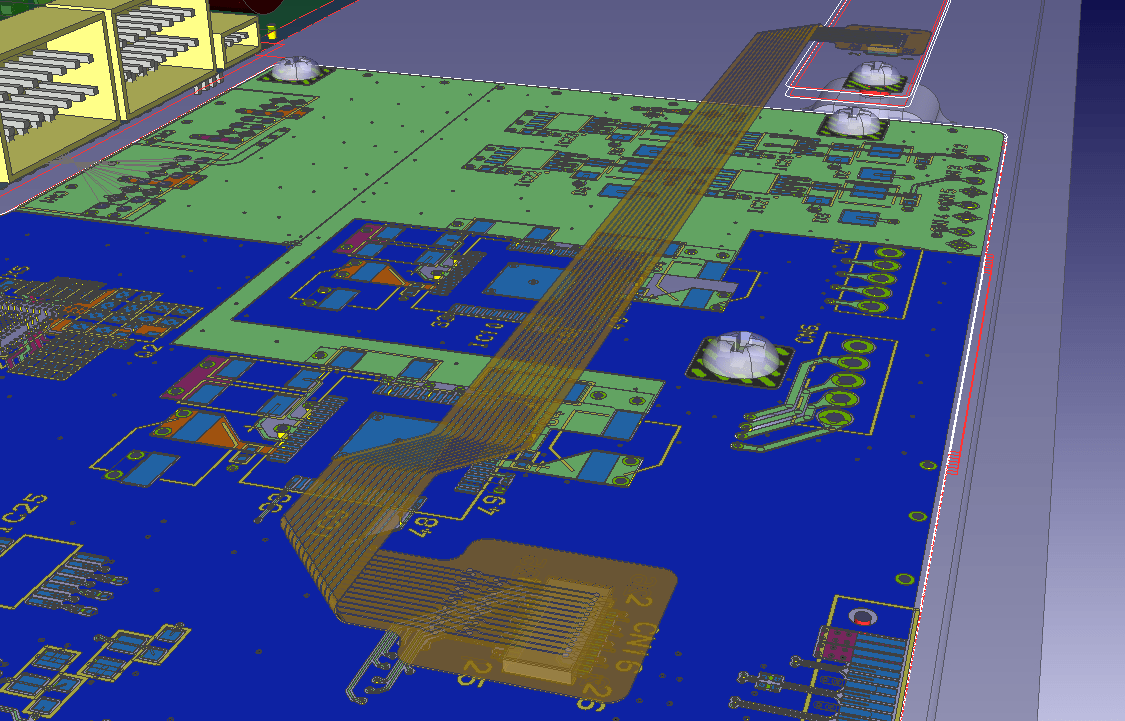

Single fabrication and assembly checking platform for any board technology, including rigid, flex, embedded components, and LTCC
Vérification avancée des règles de conception
Gérer efficacement le nombre croissant de règles de conception exigées pour assurer la fabricabilité
Menu
Conception avancée pour la fabrication
Assurer la fabricabilité grâce à un moteur de vérification intégré
Concurrent verification of manufacturing rules any time in the design process through an embedded checking engine
Over 900 rules in 96 groups to improve product quality and yield. Easy extension and update through wizards
Automatic generation of spreadsheet reports with screenshots for documentation and communication
Advanced Design for Manufacturing
Ensure manufacturabilty through an embedded check engine
The check engine for ADM can handle more than 900 individual checks in 96 groups. These cover both bare board manufacturability and component mount checks. It is even possible to automate the visual check process
The Rule Manager at the heart of the ADM system contains more than 900 rules, and is accessible using a standard web browser. Design and manufacturing parameters held in an XML database are downloaded via this familiar interface. The user can also add information to the rules
ADM bridges the gap between the layout and manufacturing phase by enabling designers and DFM engineers to exchange and run rule sets using a common check engine. Users can also review and confirm that all required rules have executed and signed-off to release the design for manufacturing.
