Exploration and evaluation of net topologies
Scenario EX

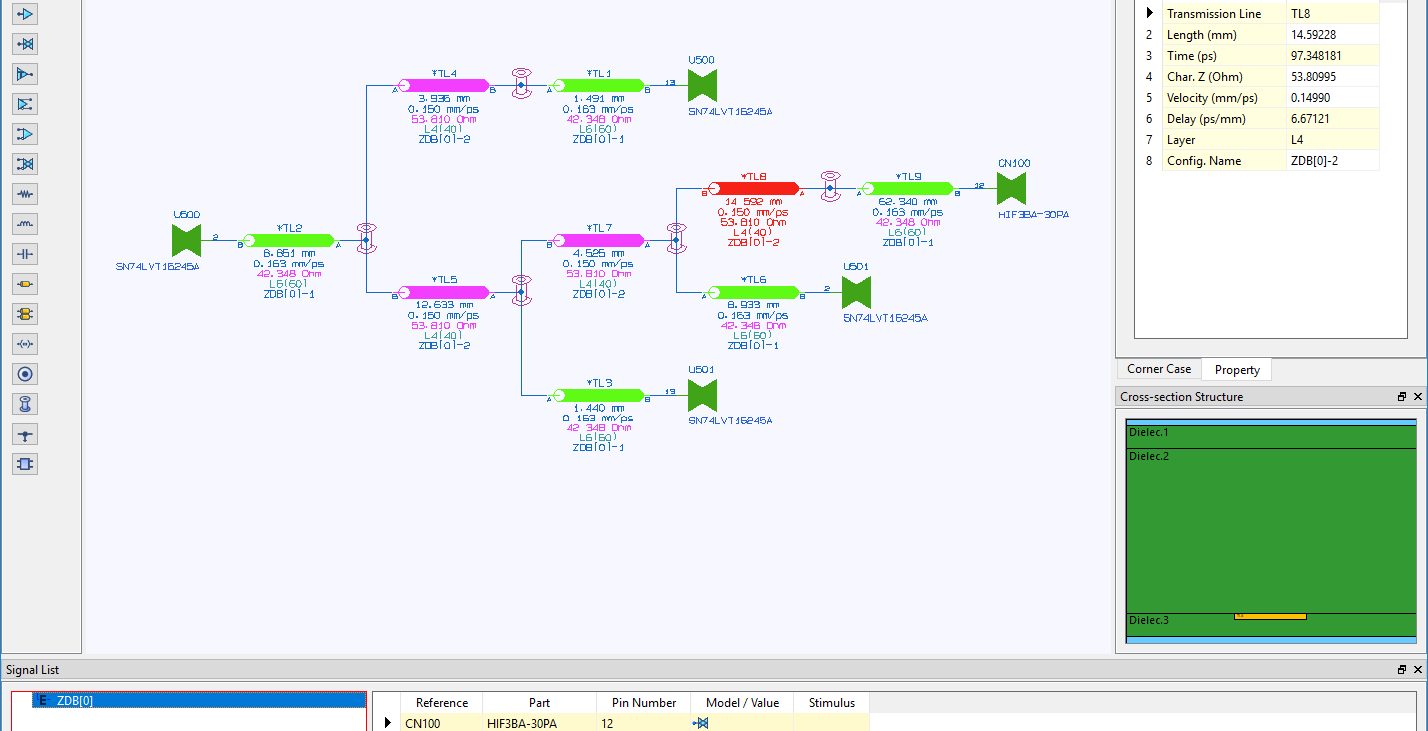

Scenario EX is a powerful simulation and analysis environment that supports checking and analysis of “what-if scenarios” from both schematic and layout data to optimize the behaviour of a circuit.
Generation of topology templates from evaluated net structures (IP reuse)
Evaluation and optimization of design constraints during schematic design
Optimization of routed e-nets and post layout verification for signal integrity issues
Scenario Ex (Electrical Editor) can be launched from following applications:
Scenario EX can be launched from the following products
- Products
CR-8000 Design Gateway provides a platform for logical circuit design and verification of multi-board system-level electronic designs.
- Products
CR-8000 Design Force is the fastest, most effective PCB design solution available today. Design Force enables design teams to layout and verify their designs in the context of a complete system or product.
- Products
Design Force offers an intuitive, integrated environment for designing single and multi-die packages for wire-bond, flip-chip, and high density advanced packaging.
