Architecture Design and Validation

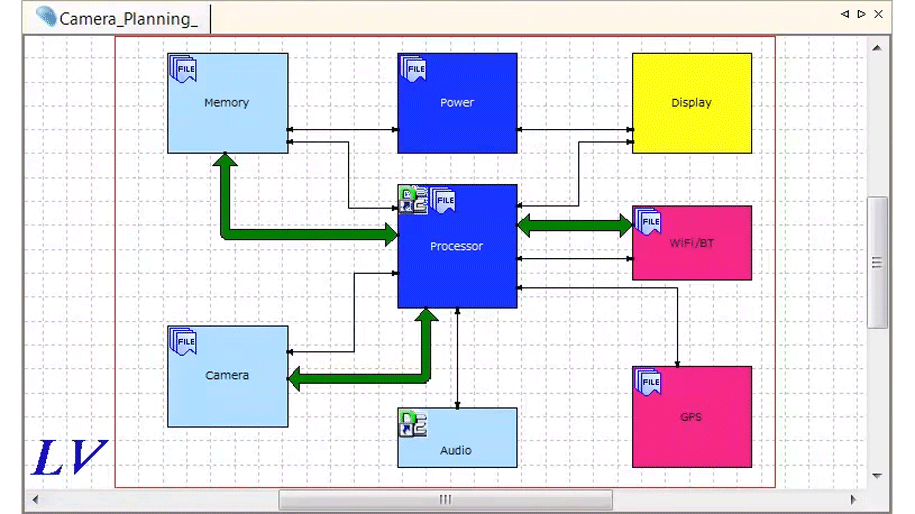

System Planner fully supports modular design. The functional design can begin with your previous generation schematic. Simply draw a functional block and attached the schematic. Icons on each block will indicate the block’s content. Additional blocks can be added directly from your corporate library which are typically used for modular design or design reuse. Functional blocks can also contain a parts list if the detailed design is not complete. The parts list can contain a few required parts along with prices, weight, power consumption, etc. Or a functional block can be a place holder with the intent to have the contents defined during detailed design.

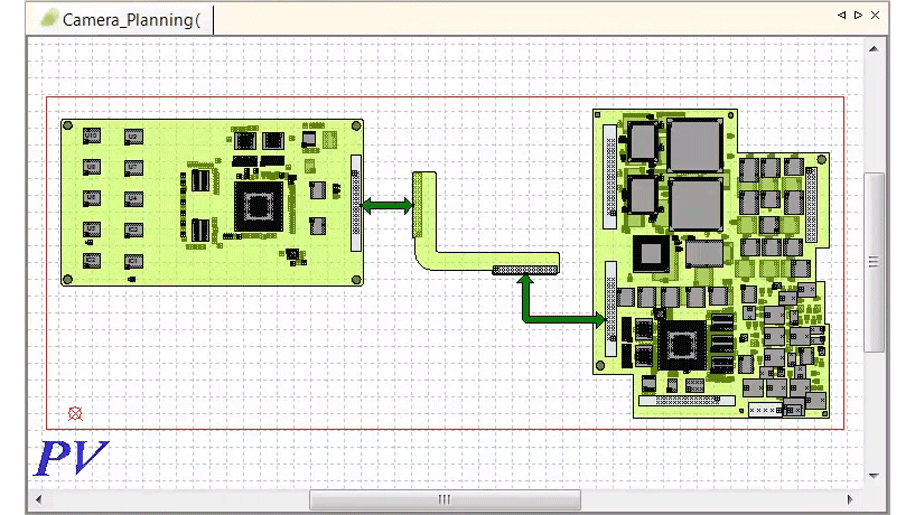

Many products or systems today are comprised of multiple PCBs. For an optimal architecture those boards need to be designed as an entire system and not independent boards. The Physical Visionary enables multi-board partitioning, planning and validation. Begin with your initial assumptions – 3 boards and 3 board outlines. Simply drag the functional blocks from the functional design onto the desired board.  You can move functional blocks from board to board anytime.  System Planner will tell you how much surface space is being utilized for a routability assessment. After some analysis, you determine that the design can fit on 2 boards which lowers cost dramatically.

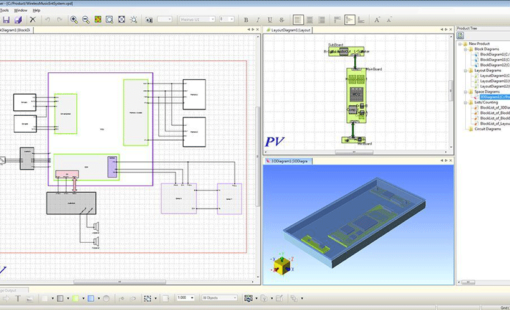

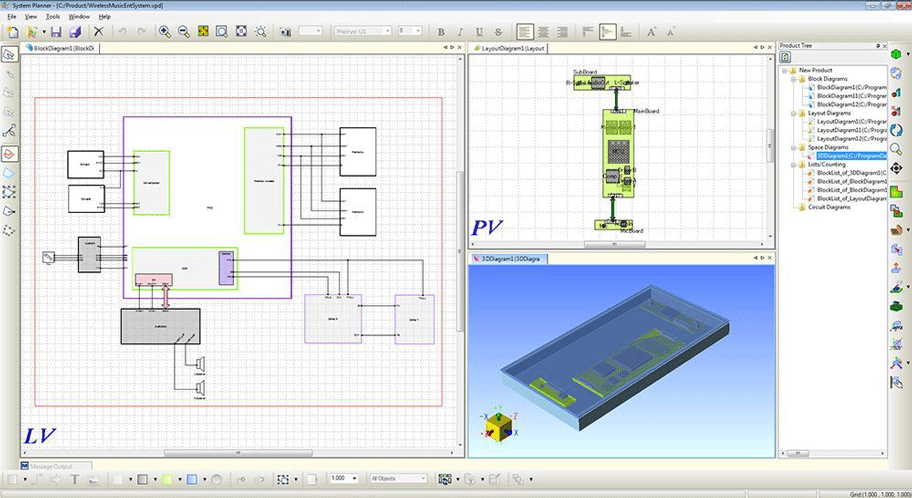

To perform a mechanical fit check the mechanical enclosure can be imported from any number of popular MCAD tools including Siemens NX, PTC Creo, Solid Edge, SolidWorks, etc.  And you always have the option of directly loading a STEP file. The boards from the Physical Visionary are dragged into the Geometric Visionary where they can be placed within the enclosure. The fit can be inspected along with some clearance and conflict. The PCB shape can be modified at this time to meet a clearance requirement.  That board shape change automatically propagates back to the PCB planning tool.

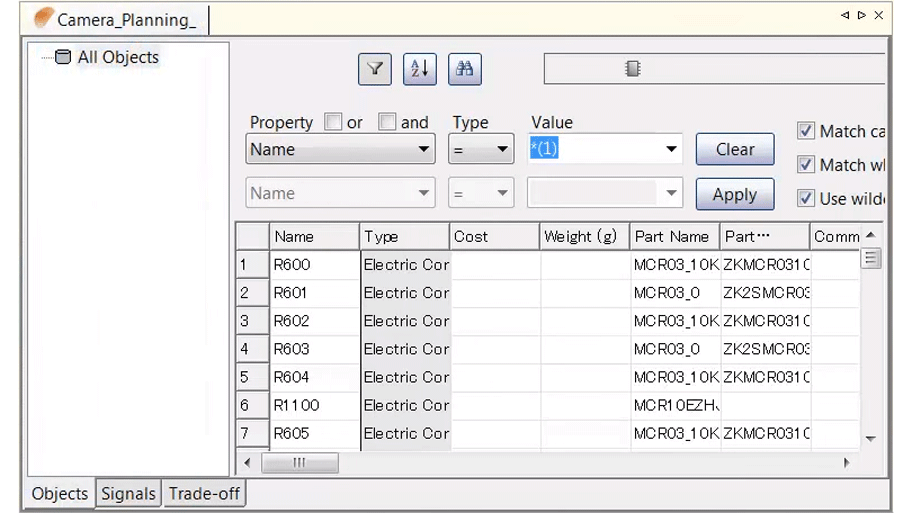

The Parametric Visionary maintains an up to date report as the design evolves. As the systems engineer adds design modules, the BOM, cost, weight and any other listed parameter is automatically updated accordingly. Requirement targets for cost or weight can also be set. As the design is evolving, the design team can see actual cost and weight compared to design requirements.

A powerful capability of System Planner is to move the functional and multi-board PCB design directly into Design Gateway (schematic design) and Design Force (PCB design) respectively.  Unlike other PCB design systems, Design Gateway and Design Force support system or multi-board design processes. The multi-board system is maintained and managed throughout the detailed design process. The product or system that you have optimized and validated in System Planner moves directly into the detailed design process without any data re-entry.

Scenario EX enables to check the electrical characteristics and the connection topology of signal tracks. It allows “What-If Scenarios” of both schematic and layout data to optimize the behaviour of a circuit. It can be used both for interactive design and design verification.
