Symbols
PCB Library Management
Menu
DS-CR EDA Library Master

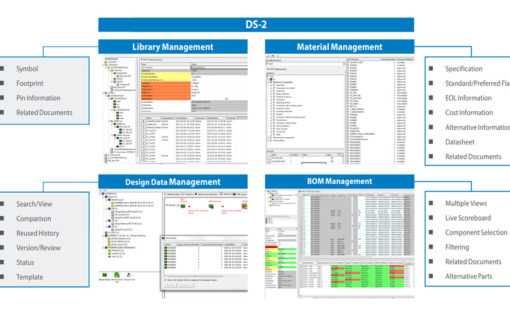

The DS-CR EDA Library Master (ELM), manages all symbols, footprints and specifications required for the PCB design process. EDA Library Master can be accessed from within the CR-8000 authoring environment. All library items managed in EDA Library Master are subject to DS-CR’s version management functionality. Geometry information and symbols can be supported for multiple sites and within specific library classes.
Footprints
Pin Information
Related Documents
PCB Library Management Software
EDA Library Master can be accessed from within the CR-8000 authoring environment. Access to validated and approved libraries significantly increases engineering productivity by eliminating time consuming and error-prone manual search practices.
All library items managed in EDA Library Master are subject to DS-CR’s version management functionality. Geometry information and symbols can be supported for multiple sites and within specific library classes.
