Specify multiple instances of strategy-driven areas
Interactive and Automatic Routing
Dragon EX - auto/interactive routing for CR-8000 Design Force
Dragon EX for Design Force empowers designers with simultaneous access to Zuken’s advanced interactive and automatic routing capabilities
Analyze potential obstacles
Automatically create strategies based on objects and rules defined
Simultaneously autoroute the design
Multi-instance, interactive and automatic routing
During board layout, users can specify multiple instances of strategy-driven areas and simultaneously autoroute the design. This significantly improves design completion times.

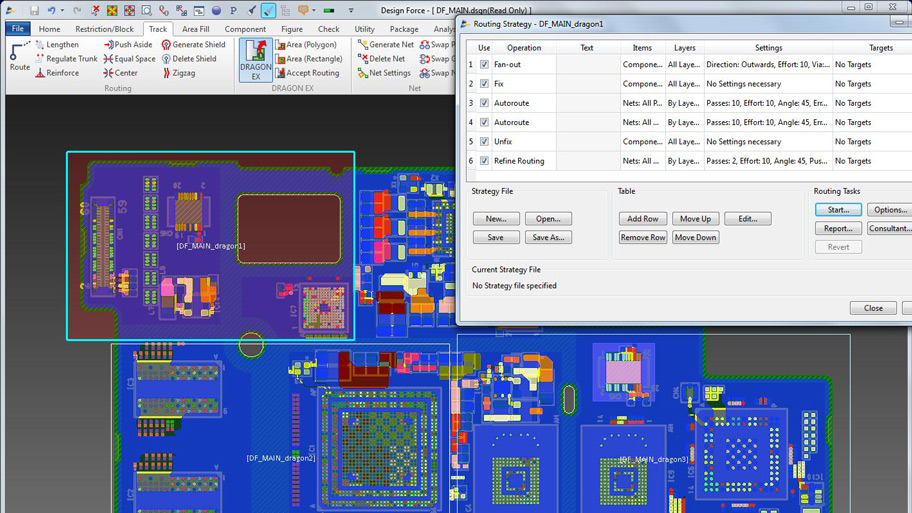

Users specify a routing strategy within each area defined with Dragon EX. Using an in-built routing consultant, they can analyze potential obstacles impacting the router and automatically create strategies based on objects and rules defined in the design. Dragon EX creates fanouts or escape routing patterns to simplify implementation and improve the routability of high pin-count devices.
