For a complete RF verification flow, CR-8000 Design Force interfaces with best-in-class, high-speed RF and electromagnetic analysis solutions. Design Force offers designers an easy-to-use user interface to extract complete or partial designs, along with material and substrate information, and export them for analysis.
Zuken’s CR-8000 interfaces to ADS, Agilent Technologies’ high-frequency design tool, for the realization of high-quality boards containing both baseband and RF circuits. Components are selected from the CR-8000 database to ensure consistency and bidirectional linking between the logical circuit data from Design Gateway and ADS Schematic. Back-annotation of design modifications in ADS Schematic can be implemented in Design Gateway‘s original schematics.
The integration between CR-8000 and Agilent Technologies’ ADS starts with synchronizing library components to be used in both environments. Users can create parts in Components Manager, and export the subset of components from the library to the ADS component database.

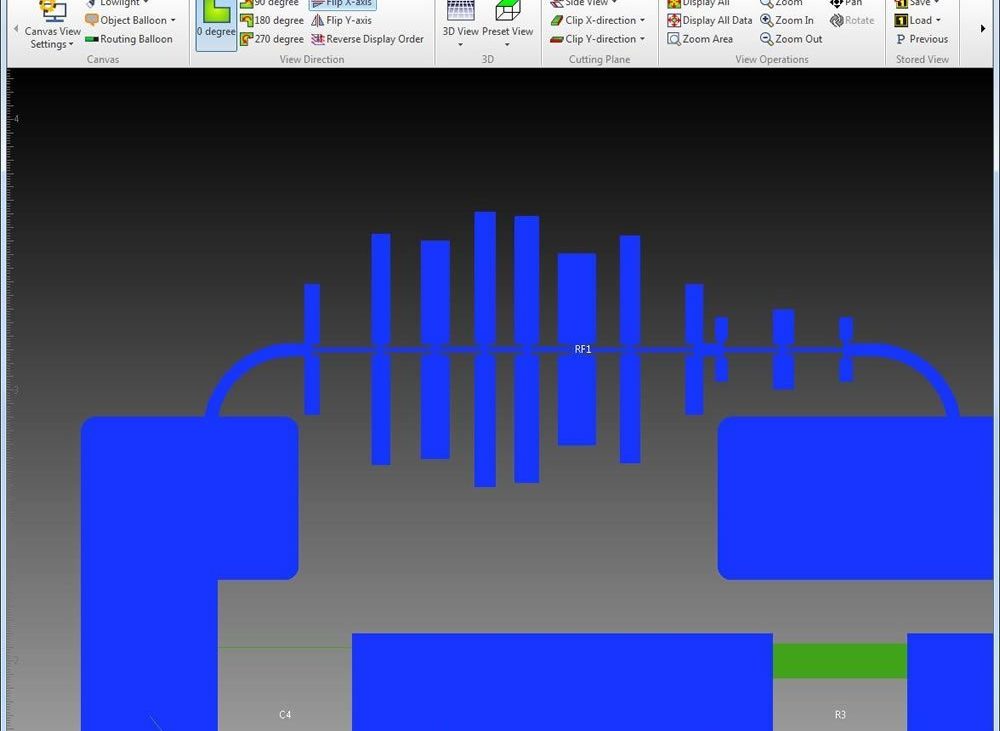

For board layout analysis, an Intermediate File Format (IFF) is exported using layout data created with Design Force with two output options: one for the ADS circuit simulator and the other for ADS Momentum for electromagnetic analysis.
For circuit simulation, parameters for each transmission line component model are extracted from the line shapes and from layer configuration information and material + information set for the PCB. Users using ADS Momentum for EM analysis may select a range of options to reduce set-up time and complexity, including exporting information such as layer configuration and material settings files from the Design Force.
In addition ports on component, terminal points can be generated automatically, ground vias can be converted into slots, and the arc resolution may be set.
CR-8000 Design Force includes an interface to Cadence AWR Design Environment/Microwave Office.
Within Design Force, users can specify the area in the design they want to analyze or use the Cadence AWR software interface utility to select the critical signals from a list and generate a 3Di file output. With AWR Connected for Zuken, the 3Di data can be imported into the Microwave Office using the 3Di Import Wizard for further electromagnetic (EM) simulation with any one of Cadence AWR software’s solutions.
Users can exchange any post-analysis conductive areas that have been modified using any one of the image export options within Microwave Office
Circuit DR Navi supportscross-probing with
PCB Design Creation - Design Gateway is a platform for logical circuit design and verification of single and multi-board system-level electronic designs. It supports a true system-level circuit design in which individual circuits can be represented and connected as blocks.
Design Force combines traditional 2D design with native 3D design and the latest human interface techniques, accelerated graphics and almost instantaneous rendering and refreshing. It is the fastest, most effective PCB design solution available today. Design Force enables design teams to layout their designs in the context of a complete system or product.
