Digitally Assisted Commissioning

Digitally assisted electrical start-up checks on machines, vehicles, and control cabinets

E3.WiringChecks - Digitally Assisted Commissioning Checks

E3.WiringChecks supports the testing of a fully wired machine, vehicle or control cabinet before or during the commissioning phase. Results can be documented as part of the E3 data record. The error descriptions can be accessed by all relevant departments from engineering to production and assigned issues can be accessed and processed. In this way, error correction and follow-up checks can be carried out in a controlled process.

Digital recording and documentation of the testing of wiring and equipment

Capture and description of errors and documentation within the circuit diagram

Documentation of the testing results as part of an E3 project

E3.WiringChecks assists in the verification of fully wired machines

Digital recording

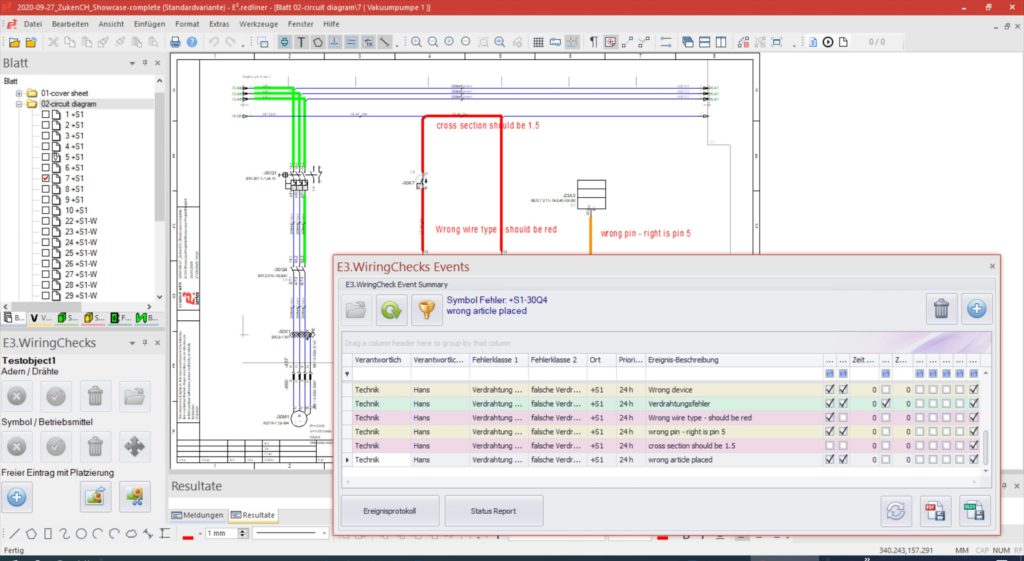

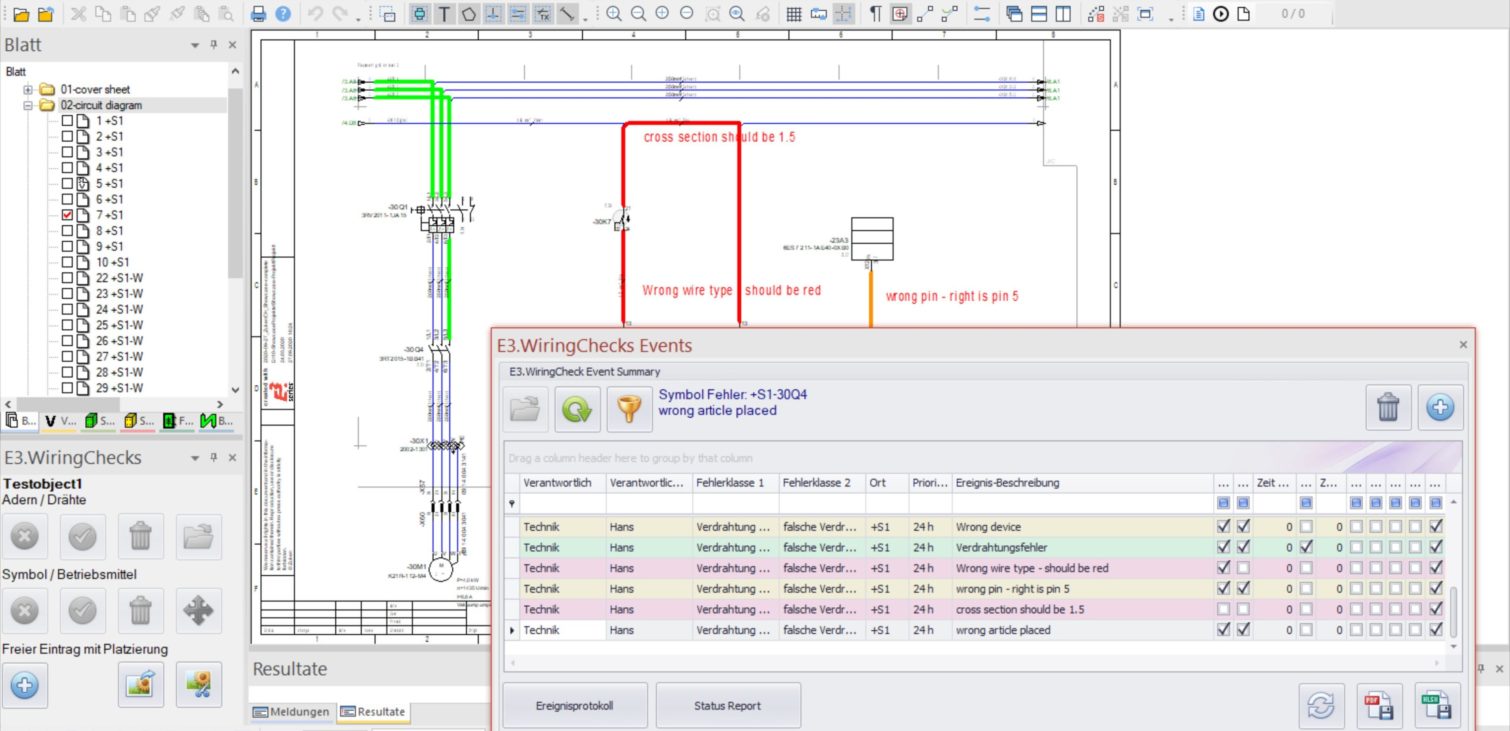

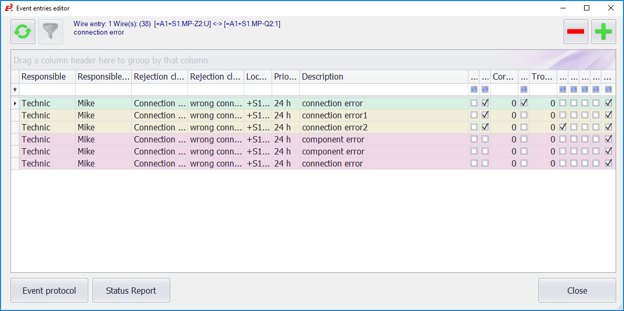

Checks of wires and devices are digitally recorded and marked as checked or fault error. In the event of an error, an incident can be recorded, described, and placed at the appropriate position in the schematic. The error descriptions can be accessed by all relevant departments, from engineering to production, and the events assigned to them can be called up and processed. In this way, it is ensured at all times that error correction and subsequent check can be processed in a targeted manner.

E3.WiringChecks

Correction of errors in a managed process

The error descriptions can be accessed by all relevant departments, from engineering to production, and the events assigned to them can be called up and processed. In this way, it is ensured at all times that error correction and subsequent check can be processed in a targeted manner.
